Junction Boxes

Electronic junction boxes provide an intrinsically safe and easy method of wiring to terminate and connect the gantry plug with the overfill rack monitor.

ADD TO ENQUIRY CART REQUEST A QUOTE

Features & Benefits
Technical Information
Ordering Information
Associated Equipment
Resources

Features & Benefits

Connection through industry standard 3 or 4 bayonet 10 pin plug for intrinsically safe signals only and/or earthing connection.
Replace gantry plug components without the need to access the overfill monitor’s explosion proof housing.
Protects the monitor’s housing from damage and potential hazard exposure should a drive-away occur.
Provision for connection of the earth lead is provided.
Easy maintenance.

Associated Equipment

GP103: Gantry plug, 3-pin bayonet, Navy Blue, supplied with cable & gland.

GP104: Gantry plug, 4-pin bayonet, Black, supplied with cable & gland.

GP114: 4 pin gantry plug with self coiling cable. (Quick Release).

GP214: 4 pin gantry plug with straight cable. (Quick Release).

EAC201: Earth Assurance clamp with 8m straight cable.

EAC202: Earth Assurance clamp with 8m self-storing (curly) cable.

RM140D: Overfill monitor (typical configuration for Australian market).

RM140E: Overfill monitor (typical configuration for Global markets).

Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.

Submit Enquiry

Submit a product Enquiry / Quote to Liquip customer service

Save as Wishlist

Save as Wishlist - handy function for account holders

Send to a Friend

Send you selection of products to a friend via a convenient email link

Image	Item	Description	Add Item into Enquiry Cart

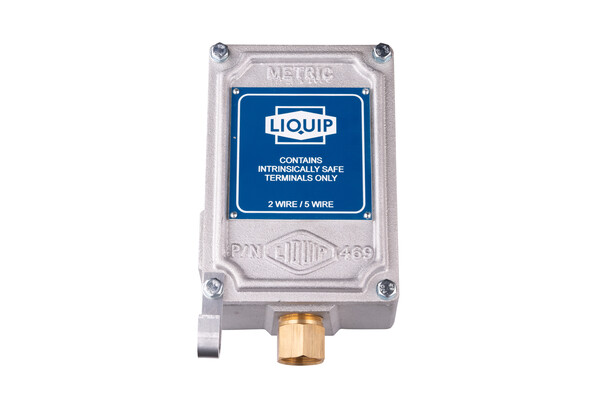

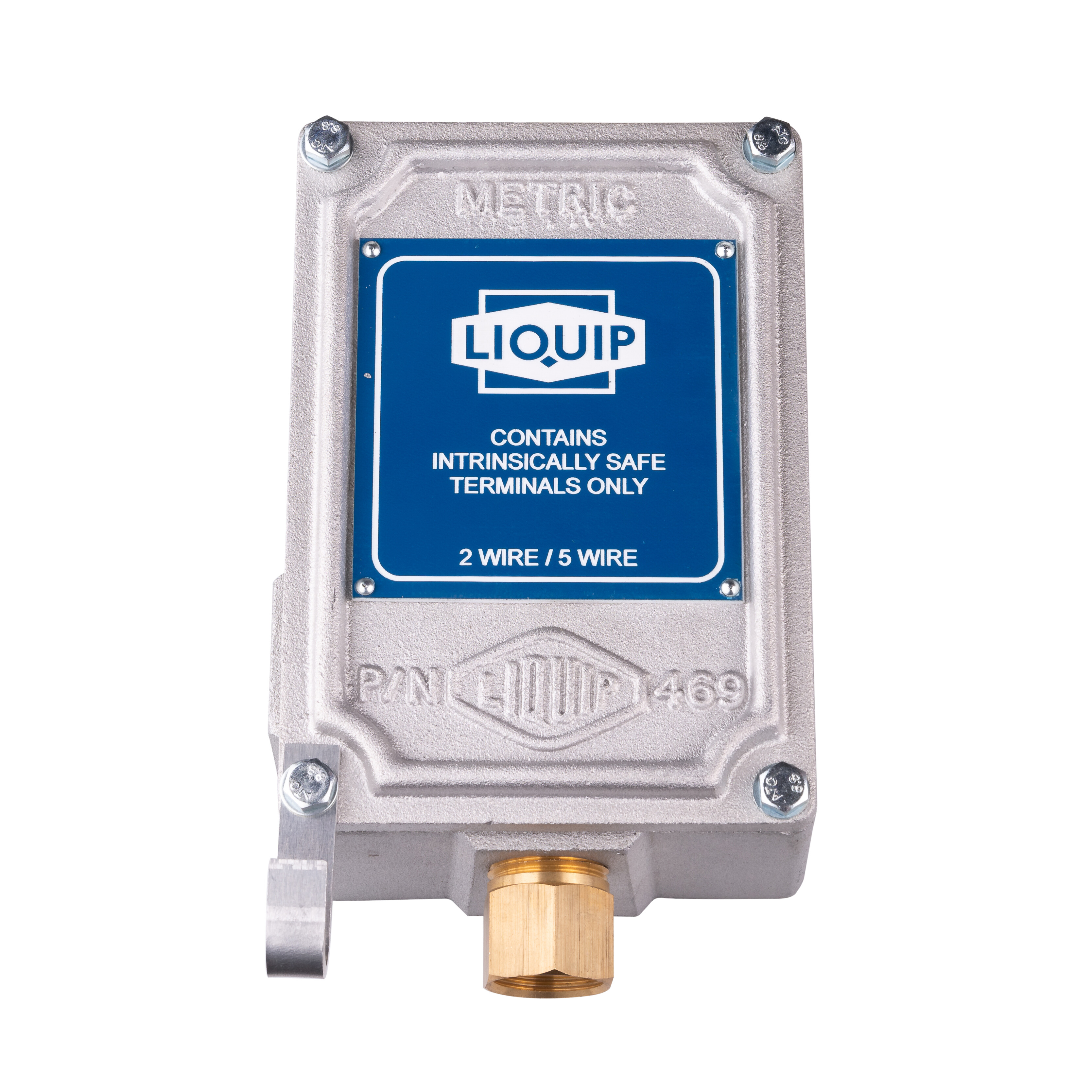

	JB100	Junction box comes with 2 x 3/4” NPS cable entries at top and bottom.
	JB103	Junction box comes with 3 x 3/4” NPS cable entries at top, bottom and left hand side.
