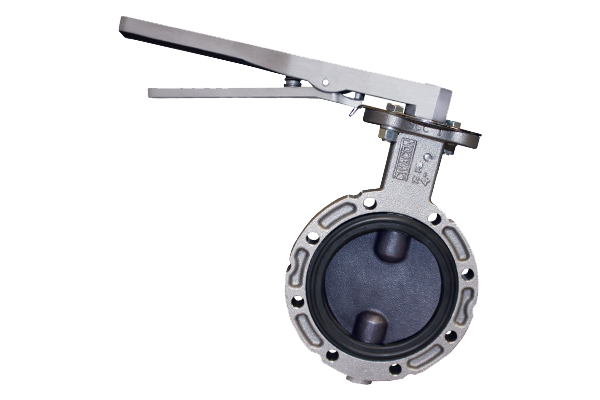

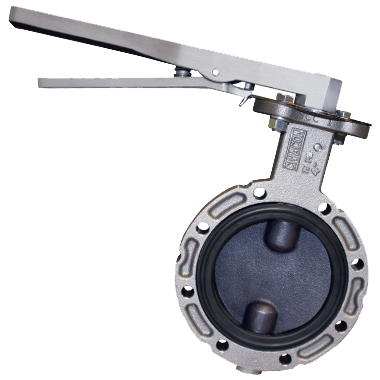

3" & 4" Aluminum Hybrid Butterfly Valves

Civacon's Aluminium body TTMA Hybrid Butterfly Valves are the ideal solution for all of your wet or dry applications! Easily handles harsh, abrasive crude oil, and refined fuel products as well as any other compatible liquid, powder or abrasive service. This valve combines the durability of a traditional resilient seated butterfly valve, while incorporating the sleek, slim-line, compact body style of a common wet/dry valve. This hybrid valve is designed with the industry standard TTMA bolt pattern which can seamlessly replace any competitor's brand wet/ dry valve with no piping or configuration changes.

With its light weight, compact profile and the longevity of a durable, resilient seat, this valve is a valuable solution for all common transportation industry materials, wet or dry. It is available with a Black Nitrile or a Black Viton® Seat, Stainless Steel or Ductile Iron Disc, and an optional 10-position, aluminium metering (throttle) style handle.

ADD TO ENQUIRY CART REQUEST A QUOTE

Features & Benefits
Ordering Information
Resources

Features & Benefits

Lightweight Compact Aluminum Body
Available with:
- Black Nitrile (NBR) Seat and Ductile Iron Disc
- Black Viton® A (FKM) Seat and Stainless Steel Disc
Applications include Crude Oil, Liquid, Powder and Refined Fuel Products
Industry Standard 3-inch and 4-inch TTMA Flange Mounting Pattern
1-1/8" Thick body profile can easily replace competitor's wet/dry valves
10-Position Aluminum Metering (throttle) Style Handle
Replaceable Seat
Maximum Operating Pressure: 75psi
Temperature Range:
- Black Nitrile -40º to 300ºF (-40º to 148ºC)
- Black Viton® 0º to 400ºF (-18º to 205ºC)

Ordering Information

HBV-3110: 3" Aluminium HBV, Black Nitrile Seat, Ductile Iron Disc, No Handle

HBV-3111: 3" Aluminium HBV, Black Nitrile Seat, Ductile Iron Disc, With Handle

HBV-3220: 3" Aluminium HBV, Black Viton Seat, SS Disc, No Handle

HBV-3221: 3" Aluminium HBV, Black Viton Seat, SS Disc, With Handle

HBV-3120: 3" Aluminium HBV, Black Nitrile Seat, SS Disc, No Handle

HBV-3121: 3" Aluminium HBV, Black Nitrile Seat, SS Disc, With Handle

HBV-4110: 4" Aluminium HBV, Black Nitrile Seat, Ductile Iron Disc, No Handle

HBV-4111: 4" Aluminium HBV, Black Nitrile Seat, Ductile Iron Disc, With Handle

HBV-4220: 4" Aluminium HBV, Black Viton Seat, SS Disc, No Handle

HBV-4221: 4" Aluminium HBV, Black Viton Seat, SS Disc, With Handle

HBV-4120: 4" Aluminium HBV, Black Nitrile Seat, SS Disc, No Handle

HBV-4121: 4" Aluminium HBV, Black Nitrile Seat, SS Disc, With Handle
